Description

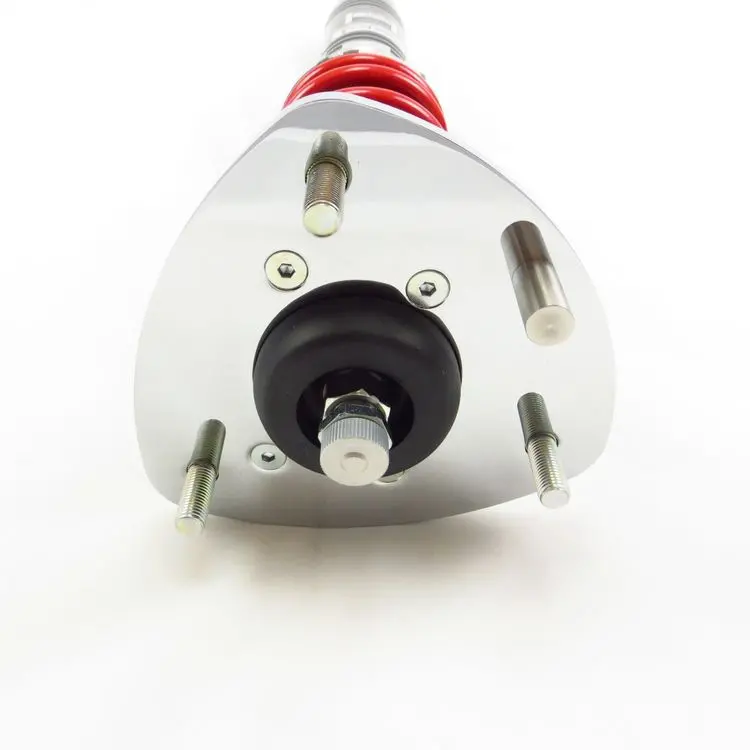

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance. Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.
Product Details
Part Number: XSPIH900M Compatibility: 2015-2020 ACURA TLX 3.5L AWD / 3.5L FWD / 2.4L FWD Chassis code:
Preset Approximate Height: 3.5L AWD
Front: -30mm to -35mm (-1.2in to -1.4in) Rear: -30mm to -35mm (-1.2in to -1.4in)
Maximum Adjustment Range: 3.5L AWD
Front: 0mm to -65mm (0in to -2.6in) Rear: +25mm to -110mm (+1in to -4.4in)
Recommended Adjustment Range: 3.5L AWD
Front: -10mm to -55mm (-0.4in to -2.2in) Rear: -15mm to -60mm (-0.6in to -2.4in)
Preset Approximate Height: 3.5L FWD
Front: -30mm to -35mm (-1.2in to -1.4in) Rear: -30mm to -35mm (-1.2in to -1.4in)
Maximum Adjustment Range: 3.5L FWD
Front: 0mm to -60mm (0in to -2.4in) Rear: +30mm to -100mm (+1.2in to -4.0in)
Recommended Adjustment Range: 3.5L FWD
Front: -10mm to -50mm (-0.4in to -2.0in) Rear: -10mm to -50mm (-0.4in to -2.0in)
Preset Approximate Height: 2.4L FWD
Front: -25mm to -30mm (-1.0in to -1.2in) Rear: -25mm to -30mm (-1.0in to -1.2in)
Maximum Adjustment Range: 2.4L FWD
Front: +5mm to -60mm (+0.2in to -2.4in) Rear: +30mm to -100mm (+1.2in to -4.0in)
Recommended Adjustment Range: 2.4L FWD
Front: +5mm to -60mm (+0.2in to -2.4in) Rear: -10mm to -50mm (-0.4in to -2.0in)
Spring Rate: All
Front: 7.0kg/mm Rear: 5.0kg/mm
Additional Information
Dampers are 36 way adjustable in the front and the Warranty: 1 Year / 12,000 miles from the day of purchase
Specification
Weight: 61 lbsDimensions: 13 in x 13 in x 30 in
Compatibility
Make: ACURA Model: TLX AWD Years: 2015, 2016, 2017, 2018, 2019, 2020 Make: ACURA Model: TLX FWD Years: 2015, 2016, 2017, 2018, 2019, 2020
